Capital_auto for Suzuki Outboard Boat Marine Diagnostic USB Cable Kit SDS 8.3;

This kit allows full Programming and Diagnostics for your Suzuki engine.  This package contains everything you need to communicate to your Suzuki engine, as a dealer would in a workshop but allow you to do it using your own laptop and saving you on expensive dealer diagnostic fees.  Everything you need to get up and running is included (Cable, Easy Install software and the latest data files).  This Cable uses the latest quality chip-set and comes with the latest drivers.

- SDS 8.3 - used to read all of your engine diagnostic codes and records, engine hours, activate low and high pressure fuel pumps, test individual injectors and ignition coils, set tilt-limit, deactivate most engine sensors for testing, view all sensor readings (TPS, IAC, battery voltage, charging voltage, rpm, oil pressure, MAP), stationary and static diagnostic tests, and much more. All data can be saved to your computer. This Diagnostic kit works on all Suzuki engines from 1999 to 2018.

Models covered:

ALL EFI DF 40 - DF 300.. DF70A/80A/90A - 2009 and later.. DF90/115 - 2001 and later.. DF100 - 2009 and later.. DF140 - 2002 and later.. DF100A/115A/140A - Serial number: 310001 and later.. DF150/175 - 2006 and later.. DF150TG/ZG/175TG/ZG - Serial number: 410001 and later (new).. DF200A - Serial number: 510001 and later (new) DF200AP - Serial number: 510001 and later (new).. DF200/225/250 - 2004 and later.. DF250S - 2008 and later.. DF300 - 2007 and later.. DF250AP/300AP - Serial number: 310001 and later (new).

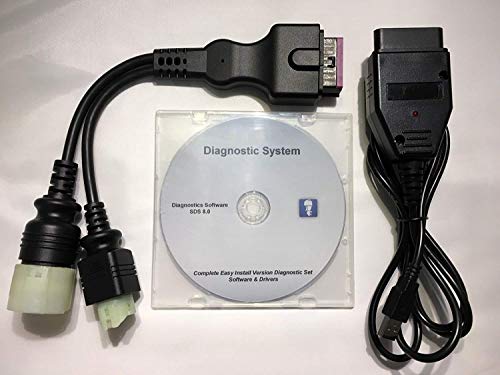

Your package will include:

• CD-ROM with Suzuki tools, software and drivers
• Preconfigured  USB cable with 4 pin and 8 pin diagnostic connectors  (Part Number: 09933-19840, 09933-19880, 09933-19830, 09933-19863)
• Step-by-step guide with pictures + technical support if needed. Note: It also comes with a 6 FT USB 2.0 extension cable.
• Video guide
