Specifications:
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A(max.), 15A(suggested)
Efficiency: 95%(24V to 12V, 20A)
Output Ripple: ≤50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery(cannot short circuit for long time)
Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
Symbol Instruction:
VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
Attention:
When input and output is common grounded, no-load CV output constant voltage,CC output constant current
Package Include:

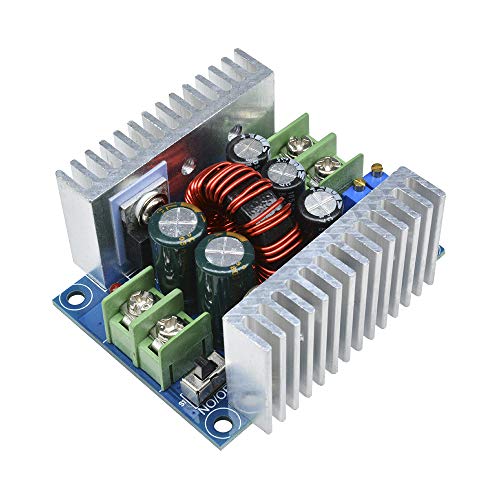

1 x 300W 20A Step-Down Module
- Aideepen 20A 300W DC Step Down Buck Converter. Input Voltage: 6V to 40V DC(10V to 40V is suggested), output Voltage: 1.2V to 36V DC,Output Current: 20A(max.), 15A(suggested)
- Short Circuit Protection: Self-recovery(cannot short circuit for long time). Plus, when input and output is common grounded, no-load CV output constant voltage,CC output constant current
- Adopting 75V / 80A large current dual MOS tube designed step-down board, Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Large current 30A connection screw terminals, more convenient to install
- The buck module has 2 heat sinks that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current. With LED indicator, more stable and reliable to use
- Application: DIY stabilized voltage supply, LED car display, mobile power, industrial equipment appliances, LED driver, monitor, solar energy, fans, photovoltaic energy, motor, etc
- Aideepen 20A 300W DC Step Down Buck Converter. Input Voltage: 6V to 40V DC(10V to 40V is suggested), output Voltage: 1.2V to 36V DC,Output Current: 20A(max.), 15A(suggested)
- Short Circuit Protection: Self-recovery(cannot short circuit for long time). Plus, when input and output is common grounded, no-load CV output constant voltage,CC output constant current
- Adopting 75V / 80A large current dual MOS tube designed step-down board, Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Large current 30A connection screw terminals, more convenient to install
- The buck module has 2 heat sinks that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current. With LED indicator, more stable and reliable to use
- Application: DIY stabilized voltage supply, LED car display, mobile power, industrial equipment appliances, LED driver, monitor, solar energy, fans, photovoltaic energy, motor, etc
