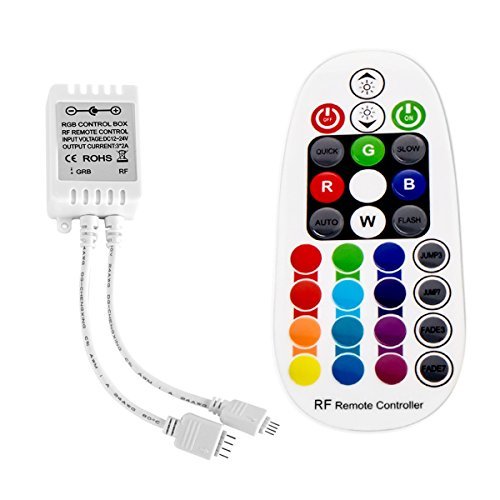

SPARKE RF Remote Control 28 Keys for Multicolor RGB LED Strip Lights, Wireless RGB LED Controller Dimmer DC12V-24V 6A, 360 Degrees Controllable Through the Wall/Obstacle;

Upgraded SPARKE RF RGB Controller

Question:Why we need to choose your product rather than other sellers?

Answer:1.Free from obstacles (360° Free Control),Don't need certain degree to aimed at the RF receiver, even penetrate walls and doors, no conflict with TV remote controller

2.Telecontrol distance: More than 20 meters/65 feet

3.Can be used to control most RGB LED low voltage strip/LED Ribbon/LED Tape from different brands



Features

This mini controller is tiny in its size(easy to be concealed) but great in its function, convenient connection and ease of use

Dynamic mode:6 modes

Static color:16 colors

Mode: Radio Frequency wireless

Max voltage: 12-24V DC

Max output power: 72W/6A

Output :2 output

Size:L 110 * W 50 * H 15mm

Remote controller battery: 2 x AAA batteries



Match code function: One remote can control multiple strips

Steps:1.Correct connection led strip light. Make work normal

2. Use remote control. Power on

3. Holding "ON" button 5 secs, LED light would flash

4. Set up, repeat 1-3 steps to match with more receivers

Issue and Solution

If color of light is not correspond with the button, following the steps to fix it:

1.Correct connection led strip light. Make work normal

2.Use remote control. Power off

3.Press"FADE7"button. LED light will flash once

4.Using remote control. Power on

5.Press"R" "G""B"button in turn to check the color

If the color is correct. Set up

If the color is not correct. Repeat 1-5 steps



Packing included

1 x RF Remote controller

1 x Receiver box

1 x User maual



Notice

1.This RGB controller cannot used to control RGBW LED light

2.Remote need 2*AAA batteries, but batteries are not included
