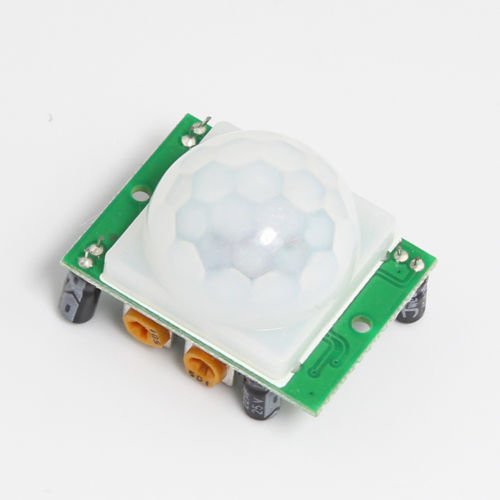

Working voltage range: DC 4.5-20V Static current: <50uA High level output: 3.3 V / low 0V Trigger mode: L unrepeatable trigger /H repeated trigger (Default Repeating trigger) Delay time: 0.5-200S (adjustable) can be produced range 0.1 seconds - a few minutes Blocking time: 2.5S (the default) can be produced range 0.1 seconds, tens of seconds Size: 32mm*24mm circuit board Induction angle: <100 degree cone angle Working temperature: -15-+70 degrees Induction of lens size: diameter: 23mm (default) shipping list: 1pcs New HC-SR501 Infrared PIR Motion Sensor Module
Working voltage range: DC 4.5-20V Static current: <50uA High level output: 3.3 V / low 0V Trigger mode: L unrepeatable trigger /H repeated trigger (Default Repeating trigger) Delay time: 0.5-200S (adjustable) can be produced...
