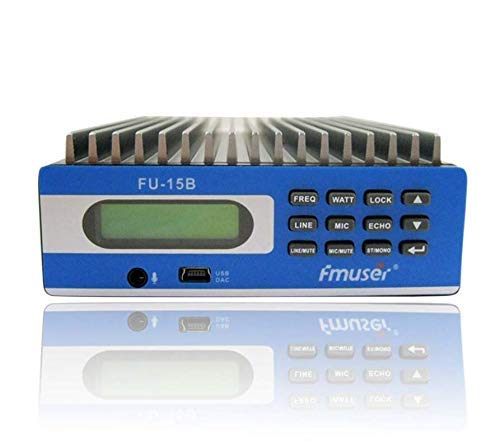

Fmuser Fu-15b 0w-15w Premium Professional Pc Control Fm Transmitter with Gp100 Antenna and Power Supply and Audio Cable;

Main features
â—‹ transmit power continuously adjustable from 0W to 15W
â—‹ transmit power automatically lock
â—‹ microphone with reverb and can be turned on or off
â—‹ Single / dual-channel conversion can be
â—‹ with PC control port, through computer manipulation
of the machine
â—‹ with audio digital-analog conversion, digital input
products easier
â—‹ with VSWR protection, the antenna is not connected or
do not match, the automatic access to protected
â—‹ with temperature protection, when the transmitter when the
temperature is too high, automatically protected
â—‹ panel display and intuitive, simple operation, fast
â—‹ transmitter designed, durable
Technical parameters
Operating voltage 12V ~ 16V (rated voltage 15V)
Current <3A
Frequency range of 87 ~ 108MHZ
Frequency stability ± 10PPM
Frequency step 100KHZ
Operating temperature range -10 ℃ ~ 45 ℃
Antenna impedance 50Ω
Transmit power range 0W ~ 15W
Harmonics, spurious radiation ≤-60dB
Audio Distortion 0.1%
Frequency Response 50HZ ~ 15000HZ
Separation ≧ 35 dB
Input level -15 dBV (adjustable)
Frequency deviation ± 75KHZ
SNR ≧ 60 dB
Machine size 173 mm (L) * 110 mm (W) * 48 mm (H)
Weight about 700 grams ANTENNA:
1.Frequency: 89.5MHz-94.5Mhz(A+B1)
95.5-100.5Mhz (A+B2) 100.5Mhz-105.5Mhz(A+B3) 2.Center Frequency: 92MHz / 98MHz / 103MHz
3.Gain: 3.5dB
4.VSWR: ≦1.5
5.Impedance: 50Ω
6.Power: 1W-100W (5w,7w,15w,25w,30w,50w,100w)


Package include:
1*FU-15B FM transmitter
1*audio cable,
1*1/4 wave gp antenna,
