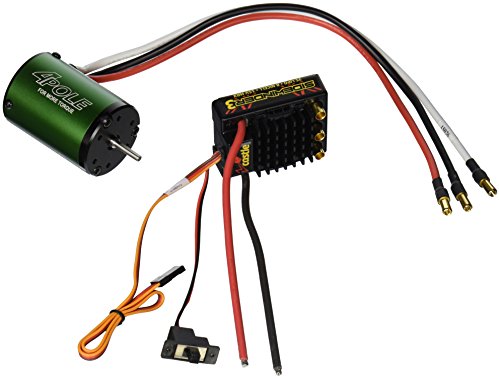

Castle Creations Sidewinder 3 Waterproof ESC with Motor (NC1406-5700KV), Scale 1:10;

Castle Creations brand Castle Creations Sidewinder SV3 12V Electronic Speed Controland the 1406 Series 5700kV Sensorless brushless Motor. FEATURES: SV3 12V ESC (CSEM0115)Recommended for all 1/10 scale buggy and truggy applications thatweigh less than 5lbs (2.25kg) ready to run (not for use in heaviervehicles such as E-Revos or E-Maxx class vehicles)USB programming capability via Castle Link USB adapter (not included, order CSEM6300)Waterproof for use in nearly every environment (not intended foroperation while submerged in liquid)Reversible with reverse lockout1406 Series 5700kV Motor (CSEC0100)540 size can replaces many stock brushed motorsFour magnet, four pole rotor for greater torque1.4 diameter slotted statorRemovable end bellYOU WILL RECEIVE: Sidewinder SV3 12V ESC with 13 gauge Motor Wires, 4mm Female BulletMotor Connectors, 13 gauge Battery Wires with Pre-Tinned Leads, Receiver Connector, On/Off Switch, Instructions, 5700kV 1406series brushless Motor with 4mm Male Bullet ConnectorsREQUIREMENTS: Battery connector of modeler's choiceSPECIFICATIONS: ESC;Input Voltage: 2S LiPo minimum, 3S LiPo maximum, 9 cell NiCd/ NiMh Brake: ProportionalReversible: Yes, with lockoutDIMENSIONS: 1.93 x 1.48 x 0.79 (49 x 38 x 20mm)Weight: 1.96 oz (55.5 g) with 5 (127mm) long battery wires and nobattery connectorMotor;kV Rating: 5700Can length: 1.9 (49mm)Can diameter: 1.4 (36mm)Shaft diameter: 1/8 (3.2mm)Weight: 5.9 oz (169.5 g)Connector: 4mm goldWire length: 9.5 (241mm)jxs 01/10/13ir/jxs
